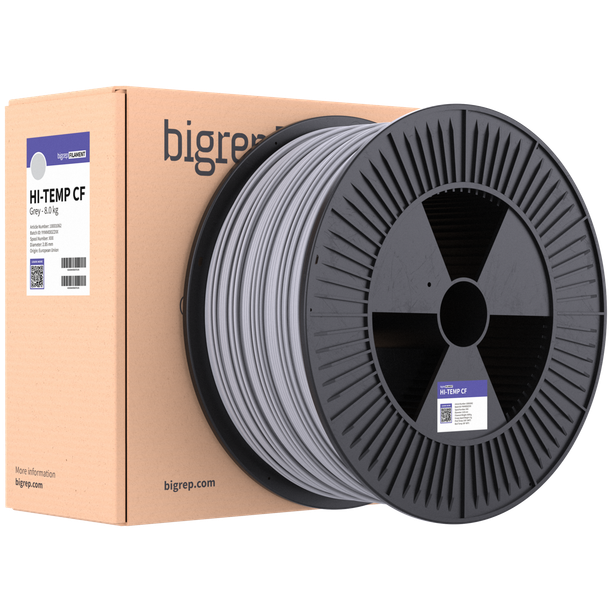

        HI-Temp CF

        $62.78$645.05

        SKU: N/A Categories: , Tags: , , ,

        BigRep’s HI-TEMP Carbon Fiber (CF) is a high-strength and heat-resistant engineering-grade filament. Highly stiff and incredibly durable, the material effectively maintains its form under high heat conditions. Ideal for the thermoforming process, HI-TEMP CF is the perfect match for the production of patterns and moulds. With an excellent combination of heat and UV resistance – rivalling ASA – and durability, its also ideal for functional applications regularly exposed to heat – such as in automotive or automation.

        A reliable and easy to use the material, BigRep HI-TEMP CF is optimized for large-format 3D printing and suitable for environments with limited control like factory floors.

        Highlights:

        • Stiff and durable parts
        • Lightweight
        • Heat resistant up to 115 °C
        • Class A surface finish
        • Low moisture absorption

        Physical properties:

        Material BioPolymer with carbon fibre
        Filament Sizes 0.75, 2.5, 4.5, 8.0 kg
        Diameter 1.75 & 2.85 mm
        Density 1.20 g/cm³
        Flexural Modulus(ISO 178) 7000 MPa
        Tensile Strength (ISO 527) 65 MPa
        Impact Strength Notched (ISO 179) 4.5 kJ/m²
        Heat Resistance HDT / B 115 °C

        Recommended printing conditions:

        Nozzle Temperature 220 – 250 °C
        Print Bed Temperature >60 °C
        Environmental Temperature n.a.
        Printing Speed > 40 mm/s
        Weight N/A
        Dimensions N/A
