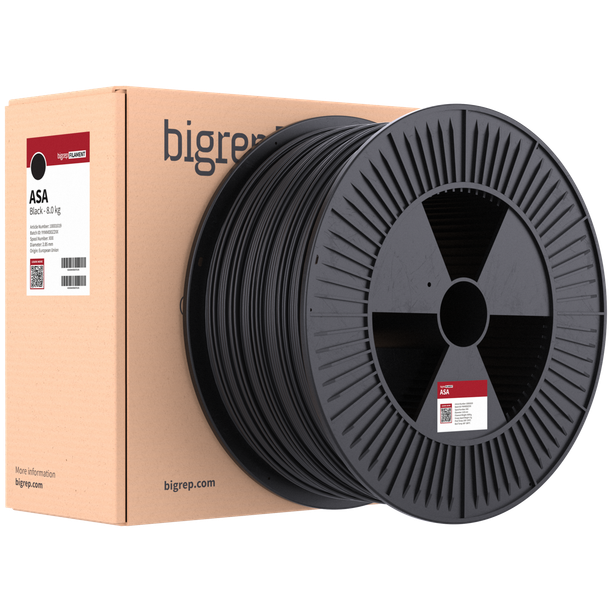

        ASA

        Price range: $259.95 through $419.95

        BigRep ASA is a strong, engineering-grade 3D printing filament that can withstand exposure to the elements thanks to excellent weather and UV resistance. Designed for industrial and end-use parts, ASA is particularly well-suited to applications in automotive and sporting goods where strength and UV stability are crucial. Its superior layer adhesion and low shrinkage mean that ASA 3D prints are less prone to warpage resulting in strong, geometrically accurate parts.

        BigRep ASA has been optimized for large-format additive manufacturing and is able to print complex and lightweight ready-to-use parts including end-use, factory tooling, and functional prototypes. With high heat deflection properties, ASA is well-suited for applications exposing parts to high temperatures and prolonged sunlight.

        SKU: N/A Category: Tags: , , ,

        Filament Properties

        Material Acrylonitrile Styrene Acrylate
        Diameter 2.85 mm
        Density (ISO 1183) 1.09 g/cm³

        Mechanical Properties

        Tensile Strength (ISO 527) 40 MPa
        Tensile Modulus (ISO 527) 1800 MPa
        Flexural Strength (ISO 178) 60 MPa
        Flexural Modulus (ISO 178) 1900 MPa
        Impact Strength, Notched (ISO 179) 30 kJ/m²

        Thermal Properties

        HDT A – 1.8 MPa (ISO 75) 86 °C
        HDT B – 0.45 MPa (ISO 75) 94 °C
        Glass Transition Temperature (Tg) (DSC) 105 °C

        Recommended Printing Conditions

        Nozzle Temperature 230 – 270 °C
        Print Bed Temperature 60 – 100 °C
        Fan Speed 0 – 100 %

        Other Information

        Drying recommendations 80 °C for 4 – 6 hours
        Reach Compliant Yes
        RoHS Certified Yes
        FDA Compliant No

        Packaging

        Package Weight (Approx.) 9.6 kg
        Weight N/A
        Dimensions 10 × 10 × 4 in
