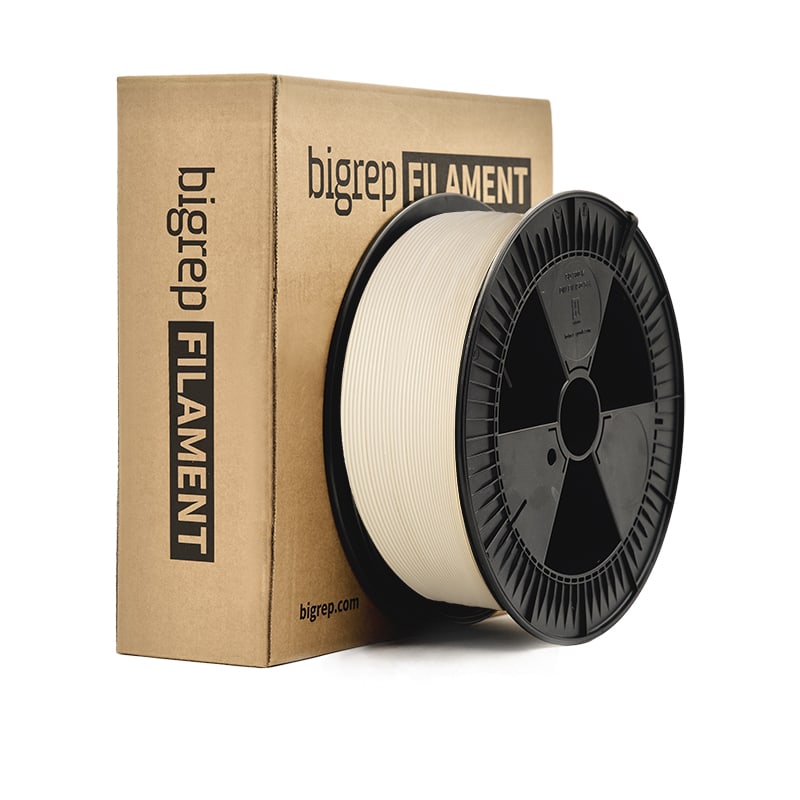

        BVOH

        Price range: $449.95 through $799.95

        BigRep’s BVOH support material is a water-soluble filament that drastically reduces post-processing for 3D-printed parts. Created for use with dual-extruder printers, BigRep BVOH is compatible with a wide range of materials to provide efficient support during the printing process. BVOH is ideal when 3D printing complex geometries where breakaway support be difficult to remove or impossible to access after printing. When the surface appearance of your part is paramount, BigRep BVOH results in better surface quality with less post-processing effort.

        BVOH easily dissolves in water, cleanly freeing parts from support structures without manual post-processing. While the dissolving time depends on part geometry and slicing settings, BVOH’s solubility increases with higher water temperature and delivers faster results.

        SKU: N/A Category:

        Filament Properties

        Material Butenediol Vinyl Alcohol Copolymer
        Diameter 2.85 mm
        Density (ISO 1183) 1.14 g/cm³

        Mechanical Properties

        Tensile Strength (ISO 527) 34 MPa
        Tensile Modulus (ISO 527) 2300 MPa
        Flexural Strength (ISO 178) 50 MPa
        Flexural Modulus (ISO 178) 2200 MPa

        Thermal Properties

        Vicat Softening Temperature 90 °C
        Glass Transition Temperature (Tg) (DSC) 68 °C
        Melting Temperature (Tm) (DSC) 175 °C

        Recommended Printing Conditions

        Nozzle Temperature 190 – 210 °C
        Print Bed Temperature 50 – 70 °C
        Fan Speed 0 – 100 %

        Other Information

        Drying recommendations 60 °C for 8 – 12 hours
        Reach Compliant Yes
        RoHS Certified Yes
        FDA Compliant No
        Weight 6 lbs
        Dimensions 8 × 8 × 4 in
